| Place of Origin: | JIANGSU CHINA |
|---|---|
| Brand Name: | GAMMA |
| Certification: | ISO 9001 |
| Model Number: | TGSU |
| Minimum Order Quantity: | 1 pcs |
| Packaging Details: | Steel Frame |
| Delivery Time: | 40-60days |
| Payment Terms: | L/C, D/P, T/T, Western Union |
| Supply Ability: | 100 pcs per Month |
| Thickness Of Cover Sheet: | 2mm | Thickness Of Bottom Plate: | 5-6mm |
|---|---|---|---|
| Thickness Of Side Wall: | 4mm | Power: | 2.2kw-10kw |
| Accessories: | Speed Sensor | Function: | Blockages Proof |
| Capacity: | Large | Type: | Single Layer & Double Layer |
| High Light: | TGSU Grain Chain Conveyor,Single layer Grain Chain Conveyor OEM,Galvanized Scraper grain elevator belting |
||
High quality TGSU Series Chain Grain Conveyor Galvanized Scraper
Features:
The flights are fixed between two strands of chain, drags the material from feeding end to the discharge end in open or closed trough. These are available in different widths and lengths as per the site requirements and are also used for handling slightly sluggish, loose or lumpy hot material.
Models Information :
| Model | Max Power (KW) | Capacity (T/H) | Scraper chain linear velocity (M/S) |
| TGSUl6 | ≤7.5 | 10-20 | 0.35-0.5 |
| TGSU20 | ≤11 | 20-25 | 0.35-0.5 |
| TGSU25 | ≤15 | 25-40 | 0.35-0.5 |
| TGSU32 | ≤22 | 40-65 | 0.35-0.5 |
| TGSU40 | ≤30 | 65-100 | 0.35-0.5 |

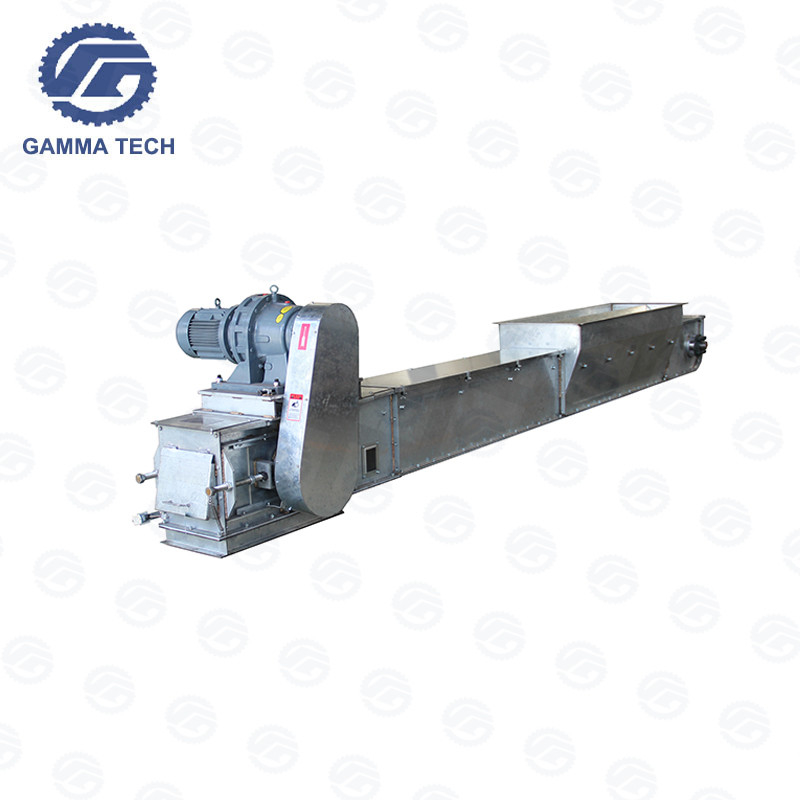

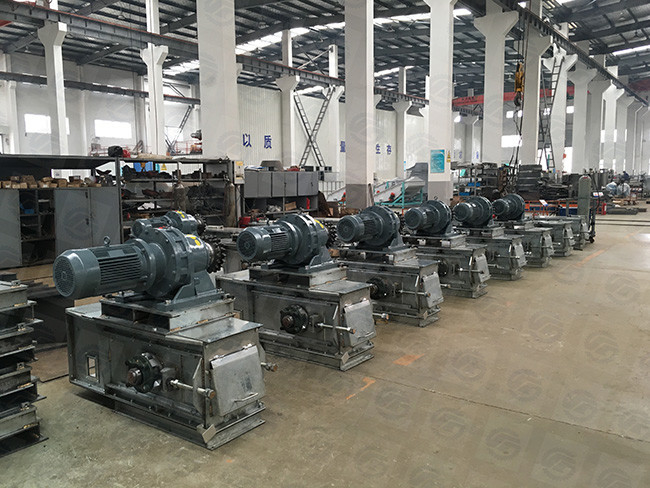

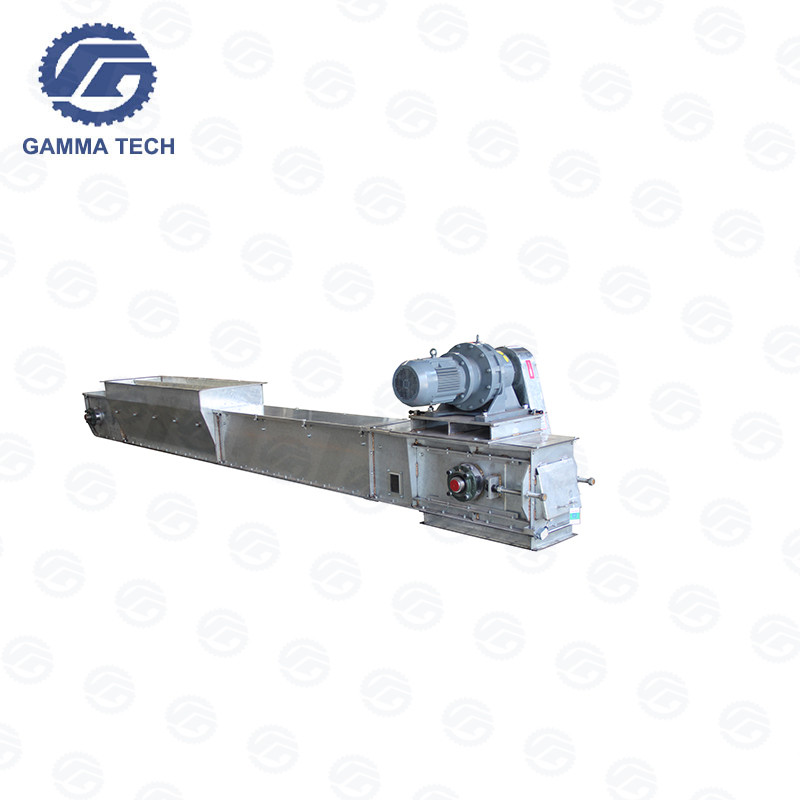

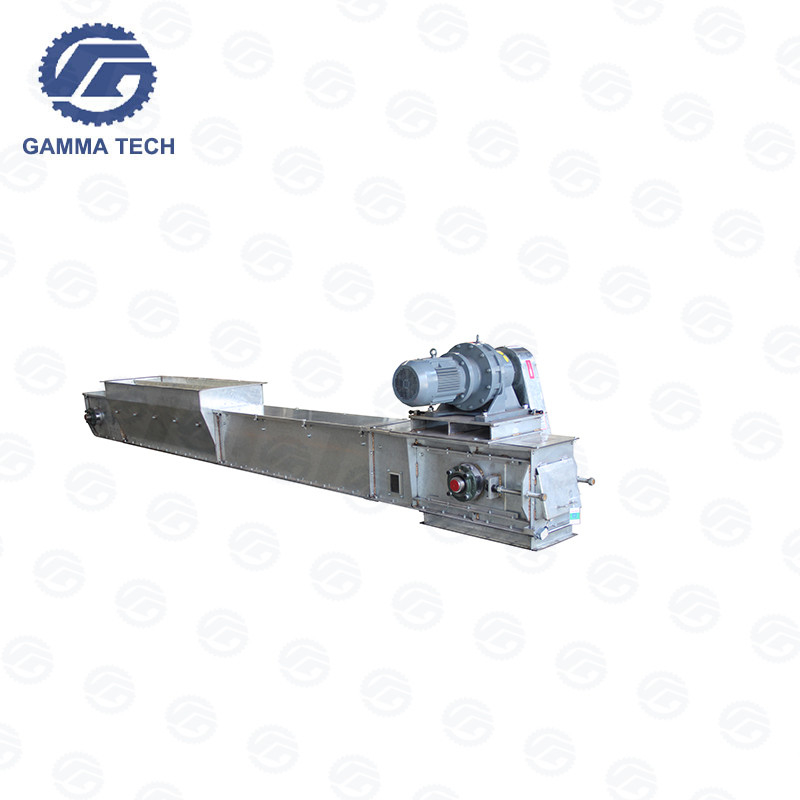

Photos:
FAQ
Q: Who Are We?
A: We are Wuxi Gamma Agriculture Technology Co.,Ltd a professional and reliable company mainly engaged in feed equipment.
Q: What Srevice Can We Provide?
A: We have feed production line, single machine and device parts for you.
Q: When will our problems be solved?
A: At the moment you tell us, we have contacted our professional technicians, you don't have to worry.
Q: how can we guarantee quality?
A: We have relative certificates, and our machine have one year warranty
if you have need, final Inspection before shipment.
Q: How to safe the goods for you?
A: we also can sign insurance in the contract to help you insure.
