| Place of Origin: | JIANGSU CHINA |
|---|---|
| Brand Name: | GAMMA TECH |
| Certification: | ISO 9001 |
| Model Number: | LP130 |
| Minimum Order Quantity: | 1 SET |
| Packaging Details: | Wooden Box /Steel Pallet/ |
| Delivery Time: | 40-60days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 50 Sets Per Month |
| Packing Speed: | 900bags/hour | Model Of Robot: | NACHI LP130 |
|---|---|---|---|
| Brand Of Bearing: | NSK | Brand Of Cylinder: | HENGLI OR SMC |
| Gear Box: | Nord | Bag Size: | 50kg /bag |
| Warranty: | 12 Months | Voltage: | 380V,Customized,380V 50HZ Or Customized |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Field Maintenance And Repair Service,Field Installation | Condition: | New |
| High Light: | 50kg/bag automatic box palletizer,LP130 automatic box palletizer,NSK bearing feed packaging machine |
||
Automatic Palletizer Machine LP130 Robot feed Packing Line Bagging Equipment
Product Name: Robot Palletizing
1 . Bags/boxes/crates travel up the in-feed conveyor
2 . Slightly inclined gripper receives the bag/box/crate and places it against its back edge
3 . Centralisation unit inside gripper places bags/boxes/crates straight in the lateral centre of the gripper width
4 . Gripper doors open simultaneously. Bags are dropped on sliding doors. Boxes and crates are lowered on sliding doors by centralisation unit
5 . Pallet is lifted up the enclosed stacking cage to be right underneath the sliding doors where individual layers are formed
6 . Once layer is complete, squeeze collar compresses it to create a tight confined layer to the pallet's dimensions
7 . Sliding doors open to place layer on the pallet
8 . Sliding doors close and a new layer is started. At the same time, pallet moves up to press against underside of the sliding doors to press and flatten recently formed layer
9 . Pallet drops back down slightly for next layer to be placed on a flatten surface
10 . Process is repeated until pallet is complete
11 . As the pallet exits, a new layer starts. The sliding doors provide buffer to allow continuous palletizing
| Packing Speed | 900bags/hour |
| Model of Robot | NACHI LP130 |
| Brand of Bearing | NSK |
| Brand of cylinder | HENGLI OR SMC |
| Gear Box | Nord |
| Bag Size | 50kg /bag |
| Voltage | 380V,Customized,380V 50HZ or customized |
Flow Diagram

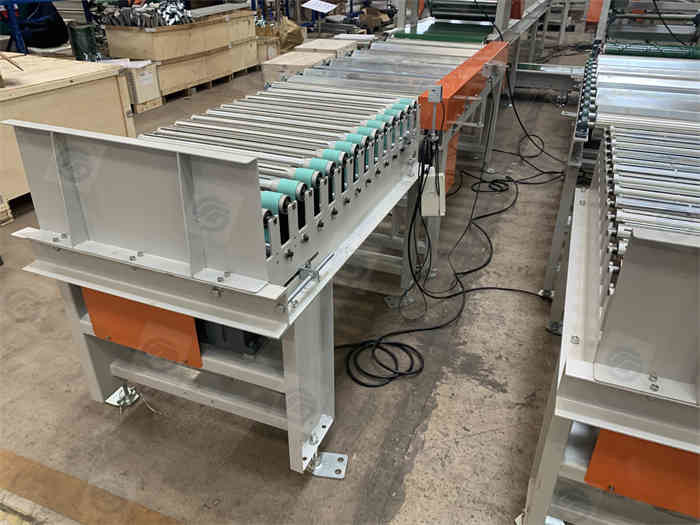

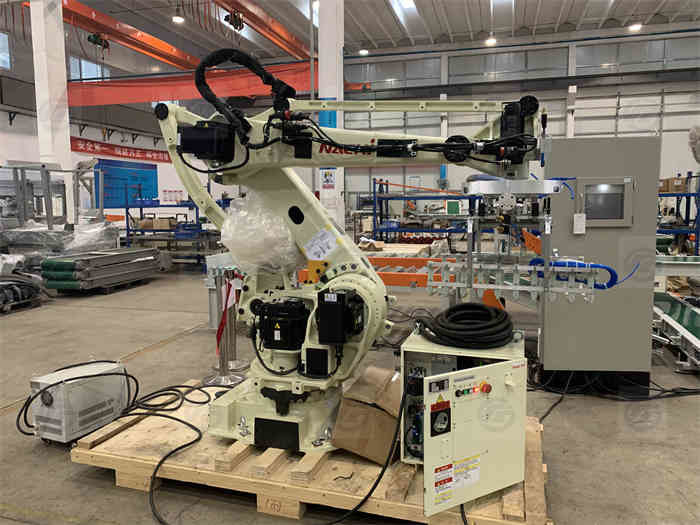

Site Photo
our service
We can provide a total-solution for feed pellet production line including consultation , design , planning , manufacture, installation and follow-up upgrade to our clients in the world.We will offer a best solution just right for you, according your situation and requirement.
