|Outside Dimensions (Length×Width×Height) (mm):||13750×2550×3990||Tank Size (Diameter×length) (mm):||2000×φ1900+10260×φ 2540|
|Total Mass (kg):||40000||Curb Weight (kg):||10500|
|Theoretical Loading (kg):||32000||Rated Loading Capacity (kg):||29500|
|Unloading Speed (kg/min):||450-550||Residual Rate (%):||0.02|
al silo tank feed bulker,
impeller air compressor feed bulker

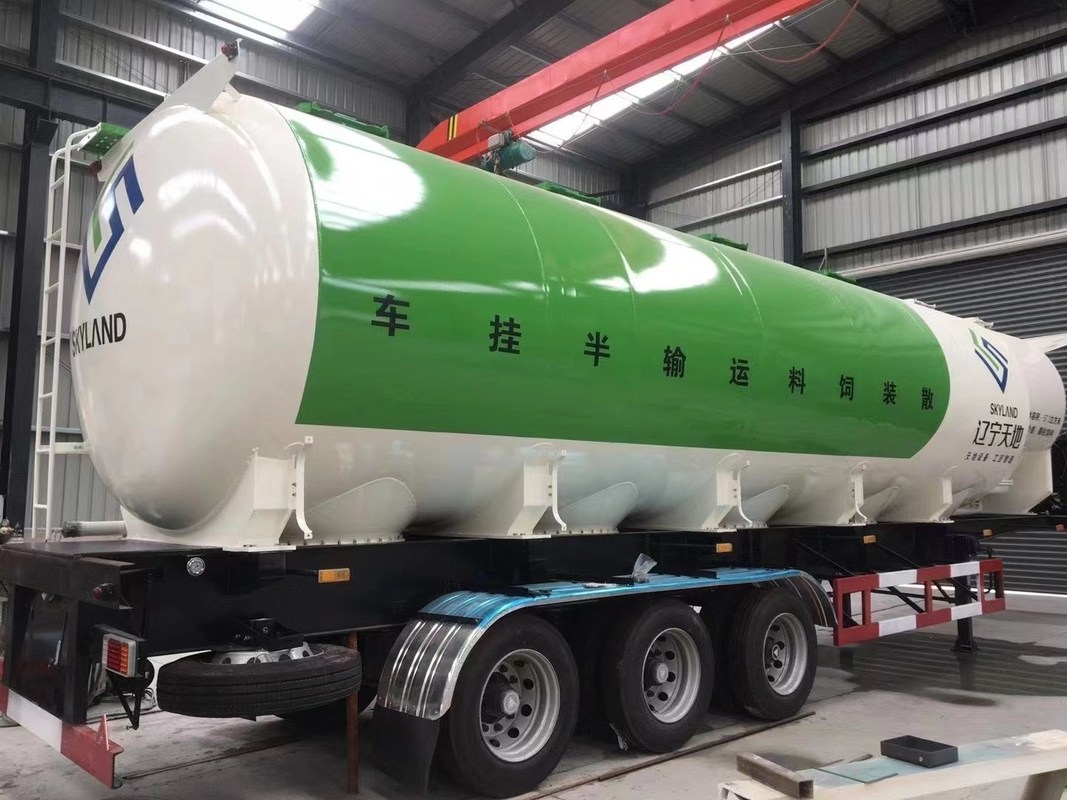

CHINA MADE 30TON AIR OPERATED DISCHARGING ALUMINUM FEED BULKER
Adopting impeller-type air compressor (Shandong Zhangqiu Blower Co.,Ltd.) and quoting European leading pneumatic conveying technology, it can realize conveyance at a distance of up to 100 meters (currently the maximum distance for end customers is 65 meters), effectively reducing the rate of feed damage and leaving no residue.To ensure biological safety.
|No.||Product name||Overall size (mm)||Effective volume (m³)||Weight||Parameter|
|13750 × 2550 × 4000||57.3m³
unit weight is 0.65
|10.5 tons||Aluminum tank. Containing matching
piping and air compressor, chassis.
Not including Traction head .
Rated load is 29.5-30 tons, maximum
is 32 tons.
6 sub warehouses.
|13 tons /Foshan Yonglitai Axle Co., Ltd.|
|19 inches /Yangzhou Tongyi Automobile Co., Ltd.|
|90# /Shandong Hongkang Machinery Manufacturing Co., Ltd.|
|Air suspension airbag shock absorption/Foshan Yonglitai Axle Co., Ltd.|
|ABS model/manufacturer||Model: CM2XL-4S/2M/Guangzhou Ruili Komi Automotive Electronics Co.,|
|Tire model/manufacturer||9R22.5 14PR/Shanghai DLtodu.ble Coin Group Co., Ltd.|
|Service brake system||Independent circuit, air pressure, drum brake with ABS|
|Ground clearance of tractor pin
of semi-trailer (mm)
|1250||Front turning radius of
Advantages of Pneumatic conveying System
Low crushing rate of feed, It can basically guarantee 100% particle integrity.
Long conveying disatance, conveying path has no restriction: height ≥10m, length ≤100m, best length ≤30m,Unloading speed 400-500kg/min.
0.11% feed residue, low noise, no pollution to feed.
Electrical configuration: Electronic control interlock protection such as under-phase and undervoltage.
Paint craft: The use of special anti-corrosion paint (better than car level), under the conditions of frequent disinfection of the farm, effectively ensure that the paint of the whole vehicle does not fall off, does not wrinkle, and does not crack. Ensure the appearance of bulk trucks.
Tank technology: 25 years of experience in the mechanical processing industry, professional aluminum circular welding process, effectively ensure the strength and tightness of the tank.
