5TPH Poultry Feed Production Line

Basic Information
Place of Origin: JIANGSU CHINA
Brand Name: GAMMA TECH
Certification: ISO 9001
Model Number: F5
Minimum Order Quantity: 1 SET
Packaging Details: Wooden Box /Steel Pallet/
Delivery Time: 40-60days
Payment Terms: L/C, T/T
Supply Ability: 50 Sets Per Year
Detail Information
Product Name: 5TPH Feed Production Line Quality: High Quality
Certification: ISO Voltage: 380V,Customer's Requirement
Condition: New Capacity: 5TPH
Application: Poultry And Aquatic Feed Raw Material: Wheat,corn Powder And So On
Pellet Size: 1-8mm,2mm-12mm Main Machine: GM350
High Light:

5TPH Poultry Feed Production Line


2mm Poultry Feed Production Line


4mm sheep feed pellet machine

Product Description

5tph auto poultry feed production line for chicken duck cattle sheep animals


Procee Details :


 1  Feed materials receiving and cleaning system:

Before going into the main equipments,feed raw materials should be cleaned to remove impurities and iron parts in order to ensure the product quality and normal working of the main equipments.

Main machine is Precleaner and Magnet .

 2  Feed crushing system:

All big size feed raw materials should be grinded to small pieces or powder feed by hammer mill,hammer mill sieve can be 2,4,6,8,10mm..

Hammer mill System .

 3  Feed automatic batching and mixing system:

After Crushion, all pellet material including corn,barly are becoming poweder . also we have independent Dumping Pit for mesh material dumping, liquid adding unit to add all oil or water .

all of them will enter 6-8 bins for automatic batching by dosing scale ,then all materail will be mixed by double shaft mixer .

Mixing System

 4  Feed pelletizing system (Including steam conditioning system):

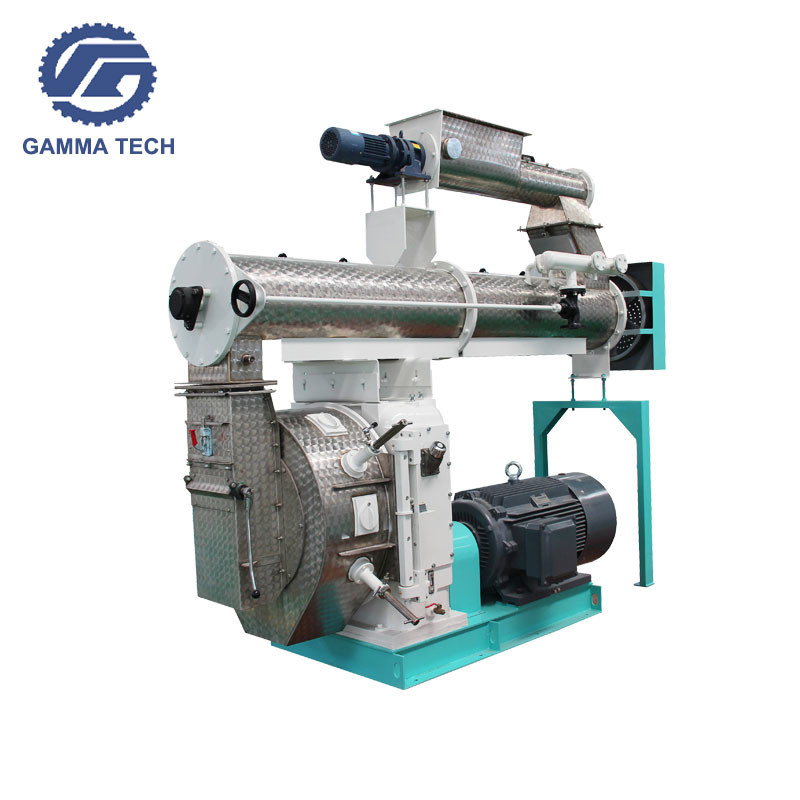

Adopt ring die feed pellet mill produce feed pellet with high production capacity and high grade pellet feed production effect. Ring die feed pellet mill can produce feed pellet,diameter 2-8mm,according to customer demand.

Steam boiler system supply steam to conditioner device,it can cooking and modulating feed improve feed moisture and temperature, steam conditioning equipment can improve the material granulating, increase production capacity,

save the energy consumption of the granulating, improve the use life time of pelletizer ring die and roller.

 5  Feed pellet cooling system:

Produced feed pellet temperature vey high,it can't suitable to pack directly,so need pellet cooler machine cool down pellet feed temperature,by cooler machine can make pellet temperature room temperature+3 degree.

 6  Feed pellet crumbling system:

Feed pellet crumbler is optional. can use crumbler to broke feed pellet for small chick feed.

 7  Feed pellet Sifting system:

We use rotary screener to sieve the feed pellet. Sieve the qualified pellet feed to sale.

 8  Automatic Packing System:

Independent packaging system, high precision and package speed,save labor.

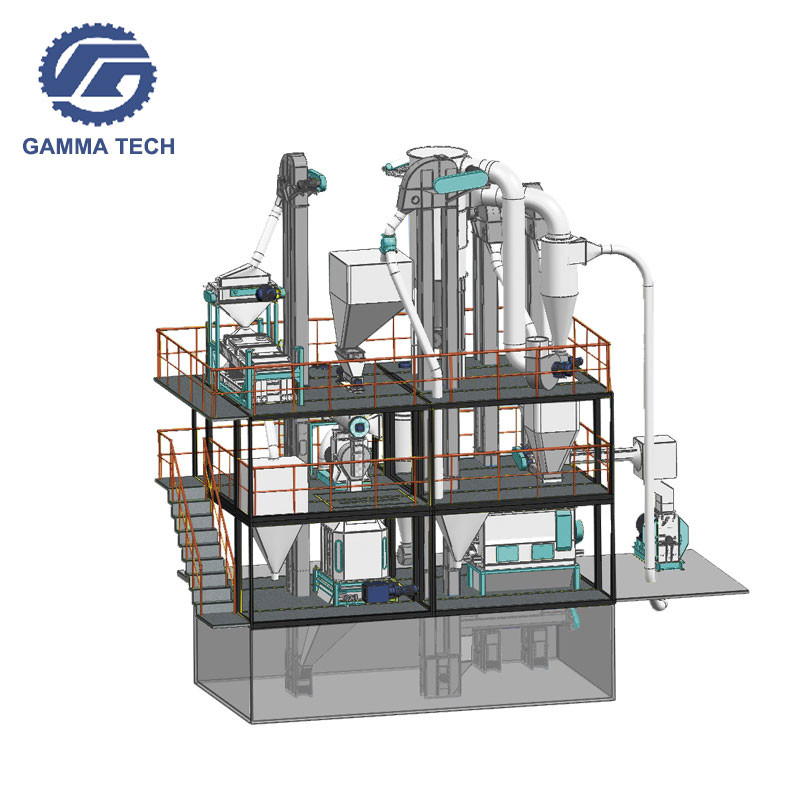

5TPH Poultry Feed Production Line 0



Flow Diagram

5TPH Poultry Feed Production Line 1





5TPH Poultry Feed Production Line 2

5TPH Poultry Feed Production Line 3


our service


We can provide a total-solution for feed pellet production line including consultation , design , planning , manufacture, installation and follow-up upgrade to our clients in the world.We will offer a best solution just right for you, according your situation and requirement.






Q: Who Are We?

A: We are Wuxi Gamma Agriculture Technology Co.,Ltd a professional and reliable company mainly engaged in feed equipment.


Q: What Srevice Can We Provide?

A: We have feed production line, single machine and device parts for you.


Q: When will our problems be solved?

A: At the moment you tell us, we have contacted our professional technicians, you don't have to worry.


Q: how can we guarantee quality?
A: We have relative certificates, and our machine have one year warranty
if you have need, final Inspection before shipment.


Q: How to safe the goods for you?

A: we also can sign insurance in the contract to help you insure.
