| Place of Origin: | JIANGSU CHINA |
|---|---|
| Brand Name: | GAMMA TECH |
| Certification: | ISO 9001 |
| Model Number: | F10 |
| Minimum Order Quantity: | 1 SET |
| Packaging Details: | Wooden Box /Steel Pallet/ |
| Delivery Time: | 40-60days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 50 Sets Per Year |
| Product Name: | 10TPH Feed Production Line | Custom: | Accept |
|---|---|---|---|
| Certification: | ISO | Voltage: | 380V,Customer's Requirement |
| Condition: | New | Capacity: | 10TPH |
| Application: | Poultry And Aquatic Feed | Raw Material: | Wheat,corn Powder And So On |
| Pellet Size: | 1-8mm,2mm-12mm | Main Machine: | SZLH420 |
| High Light: | 10tph livestock pellet machine,2mm livestock pellet machine,12mm fish food pellet maker |
||

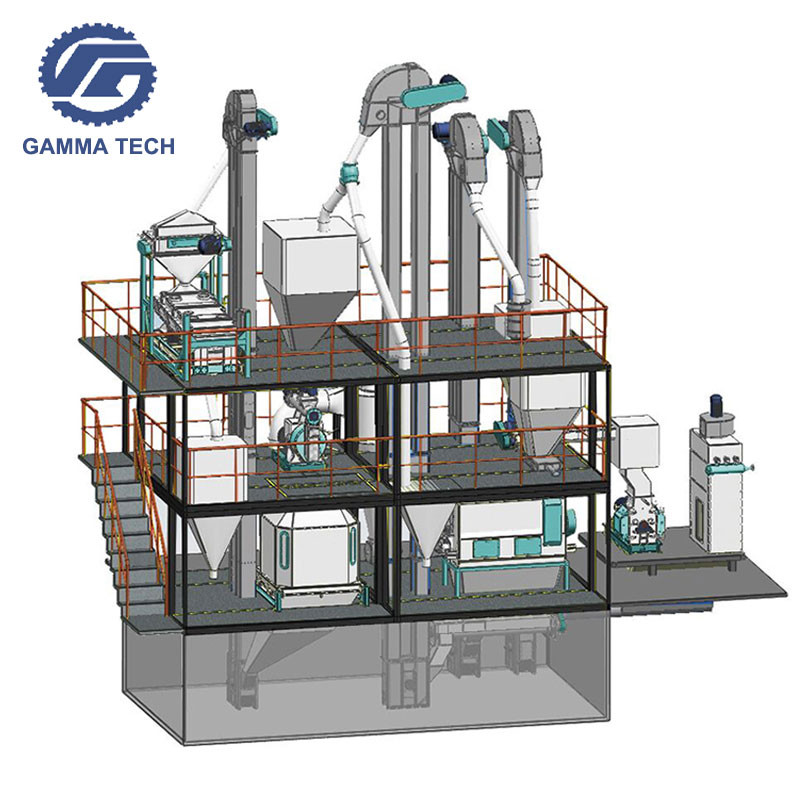

10tph Auto Feed Production Line For Poultry And Large Animals Feed Production
Procee Details :
1 . Feed materials receiving and cleaning system:
Before going into the main equipments,feed raw materials should be cleaned to remove impurities and iron parts in order to ensure the product quality and normal working of the main equipments.
Main machine is Precleaner and Magnet .
2 . Feed crushing system:
All big size feed raw materials should be grinded to small pieces or powder feed by hammer mill,hammer mill sieve can be 2,4,6,8,10mm..
Hammer mill System .
3 . Feed automatic batching and mixing system:
After Crushion, all pellet material including corn,barly are becoming poweder . also we have independent Dumping Pit for mesh material dumping, liquid adding unit to add all oil or water .
all of them will enter 6-8 bins for automatic batching by dosing scale ,then all materail will be mixed by double shaft mixer .
Mixing System
4 . Feed pelletizing system (Including steam conditioning system):
Adopt ring die feed pellet mill produce feed pellet with high production capacity and high grade pellet feed production effect. Ring die feed pellet mill can produce feed pellet,diameter 2-8mm,according to customer demand.
Steam boiler system supply steam to conditioner device,it can cooking and modulating feed improve feed moisture and temperature, steam conditioning equipment can improve the material granulating, increase production capacity,
save the energy consumption of the granulating, improve the use life time of pelletizer ring die and roller.
5 . Feed pellet cooling system:
Produced feed pellet temperature vey high,it can't suitable to pack directly,so need pellet cooler machine cool down pellet feed temperature,by cooler machine can make pellet temperature room temperature+3 degree.
6 . Feed pellet crumbling system:
Feed pellet crumbler is optional. can use crumbler to broke feed pellet for small chick feed.
7 . Feed pellet Sifting system:
We use rotary screener to sieve the feed pellet. Sieve the qualified pellet feed to sale.
8 . Automatic Packing System:
Independent packaging system, high precision and package speed,save labor.

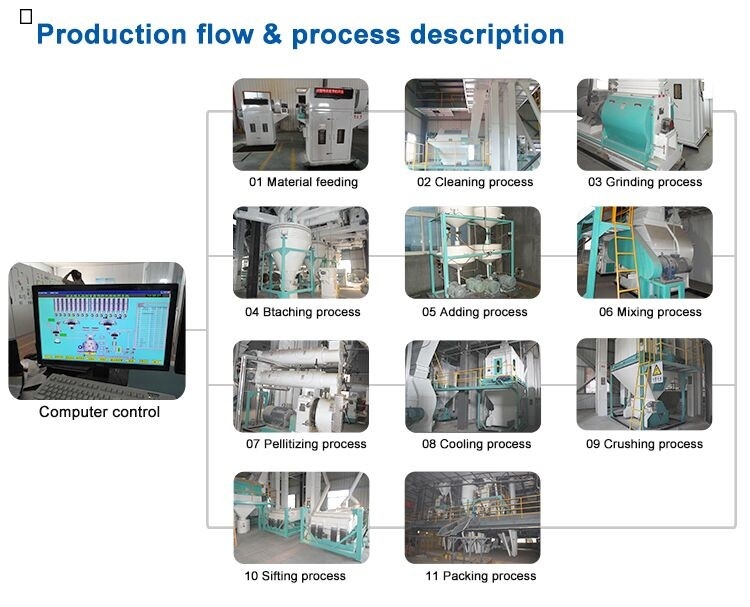

Flow Diagram

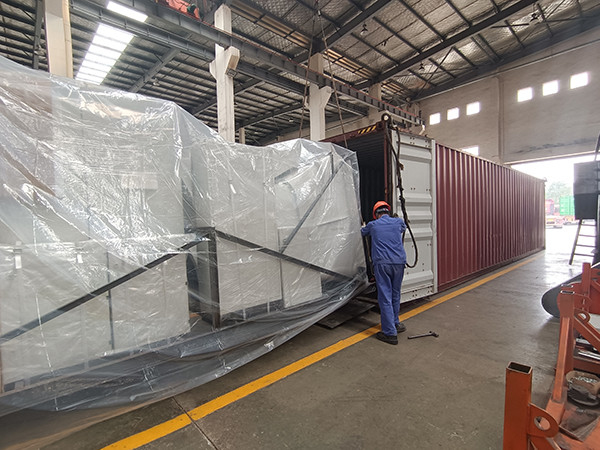

Delivery
our service
We can provide a total-solution for feed pellet production line including consultation , design , planning , manufacture, installation and follow-up upgrade to our clients in the world.We will offer a best solution just right for you, according your situation and requirement.
