| Place of Origin: | JIANGSU CHINA |
|---|---|
| Brand Name: | GAMMA TECH |
| Certification: | ISO 9001 |
| Model Number: | GM320 |
| Minimum Order Quantity: | 1 SET |
| Packaging Details: | Wooden Box /Steel Pallet |
| Delivery Time: | 40-60days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 50 Sets Per Year |
| Product Name: | Feed Production Line | Voltage: | 380V,Customer's Requirement |
|---|---|---|---|
| Capacity: | Large | Application: | Poultry Feed |
| Raw Material: | Corn, Broom Corn, Wheat, Beans, Oil Seed Meal And Other Materials | Pellet Size: | As Your Requires |
| Quality: | High Quality | Custom: | Accept |
| High Light: | 3tph Poultry Feed Production Line,Chicken Duck Poultry Feed Production Line,sheep feed pellet machine 6T/H |
||
3tph poultry feed production line Chicken Duck Cattle Sheep Feed production
Process Details :
1. Feed materials receiving and cleaning system
Before going into the main equipments,feed raw materials should be cleaned to remove impurities and iron parts in order to ensure the product quality and normal working of the main equipments.
Main machine is Precleaner and Magnet .
2. Feed crushing system
All big size feed raw materials should be grinded to small pieces or powder feed by hammer mill,hammer mill sieve can be 2,4,6,8,10mm..
3. Hammer mill System and Mixing system
3.1 Feed mixing system
After Crushion, all pellet material including corn,barly are becoming poweder . also we have independent Dumping Pit for mesh material dumping, liquid adding unit to add all oil or water .
then all materail will be mixed by mixer, we have two types mixer, one as riboon mixer and the other one is double shaft mixer .
4. Feed pelletizing system (Including steam conditioning system)
Adopt ring die feed pellet mill produce feed pellet with high production capacity and high grade pellet feed production effect. Ring die feed pellet mill can produce feed pellet,diameter 2-8mm,according to customer demand.
Steam boiler system supply steam to conditioner device,it can cooking and modulating feed improve feed moisture and temperature, steam conditioning equipment can improve the material granulating, increase production capacity,
save the energy consumption of the granulating, improve the use life time of pelletizer ring die and roller.
5. Feed pellet cooling system
Produced feed pellet temperature vey high,it can't suitable to pack directly,so need pellet cooler machine cool down pellet feed temperature,by cooler machine can make pellet temperature room temperature+3 degree.
6. Feed pellet crumbling system
Feed pellet crumbler is optional. can use crumbler to broke feed pellet for small chick feed.
7. Feed pellet Sifting system
We use rotary screener to sieve the feed pellet. Sieve the qualified pellet feed to sale.
8. Automatic Packing System(as your choose,whether need to buy or not)
Independent packaging system, high precision and package speed,save labor.
| specification | output | power | condition | note |
|
HKJ320 |
3-6T/H | 180KW | new | can custom,to be negotiation |

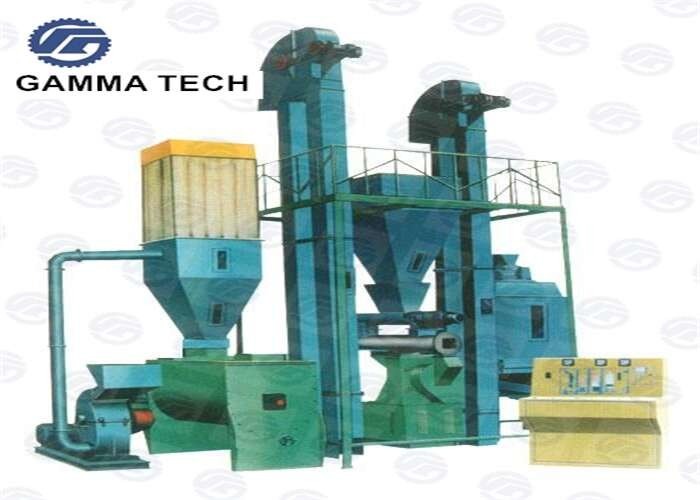

main parts as above picture
FLOW CHART:
Packing&Delivery photos
our service
We can provide a total-solution for feed pellet production line including consultation , design , planning , manufacture, installation and follow-up upgrade to our clients in the world.We will offer a best solution just right for you, according your situation and requirement.
