35M Small High Temperature Elevator And Conveyor For Lifting Seeds Wheat Grain

Basic Information
Place of Origin: JIANGSU CHINA
Brand Name: GAMMA TECH
Certification: ISO 9001
Model Number: TDTG
Minimum Order Quantity: 1 pcs
Packaging Details: Steel Pallet
Delivery Time: 40-60days
Payment Terms: L/C, T/T
Supply Ability: 50 pcs Per Month
Detail Information
Product Name: Elevator Capacity: Large
Power: 0.75kw-22kw Custom: Yes
Condition: New Material: Carbon Steel /SS/Galvernized
Dimension: Customized Spare Parts: Belt / Buckets
High Light:

35M elevator and conveyor


small elevator and conveyor ISO9001


25tph high temperature bucket elevator

Product Description

Small Grain Bucket Elevator for Lifting Seeds Wheat Grain


Bucket elevator is suitable for vertical transmission of powder, granular and small block and less abrasive bulk materials, which has a small requirement for the type of materials, characteristics and block degrees, it can raise powder, granular and bulk materials, and abrasive materials such as grain, coal, cement, crushed ore, etc. It can also raise high temperature products that below 250°C with the max height of 40m.


Belt bucket elevator is composed of machine head, main frame,Maintenance cylinder,Ventilators, dustpan, dustpanbelt and machine base.

The materials are fed into the machine from the bottom and discharged from the top.
1. Firstly, the materials are evenly fed into the dustpan on the machine base;
2. Secondly, the materials are elevated into the machine head;
3. Thirdly, the raw materials are dumped into the targeted machine.



Models Information:


Model Capacity (T/H) Max Power Max lift height
TDTG26/13 1-3 ≤3KW 20M
TDTG26/18 2-4 ≤3KW 25M
TDTG36/13 5-8 ≤3KW 25M
TDTG36/18 6-15 ≤4KW 30M
TDTG36/23 10-20 ≤5.5KW 30M
TDTG36/28 15-25 ≤5.5KW 35M
TDTG40/23 20-30 ≤5.5KW 35M
TDTG40/28 25-40 ≤7.5KW 40M
TDTG48/23 25-45 ≤7.5KW 40M
TDTG48/28 35-55 ≤11KW 45M
TDTG50/23 30-50 ≤15KW 45M
TDTG50/28 40-60 ≤22KW 45M
TDTG60/30 60-90 ≤37KW 45M
TDTG60/33 100-150 ≤55KW 45M
TDTG80/46 200-300 ≤75KW 45M


Spare Parts:

 35M Small High Temperature Elevator And Conveyor For Lifting Seeds Wheat Grain 0


1.head:the round head is covered plastic technology, increasing friction coefficient and improving transmission efficiency, it is equipped with non-return device to avoid the blocking problems because of power off. there are straight league transmission and chain drive available. 2.cylinder: occlusal edge technology ensures high strength,good sealing, additional balance pipes are equipped to balance the pressure between the two cylinders. 3.tail: the new shaft sealing structure can prevent dust leakage.split bearing structure is adopted to ensure equipment reliability, to make sure safe and normal operation,speed detection and deviation alarm device can be equipped according to your requirement.


Site Photos :

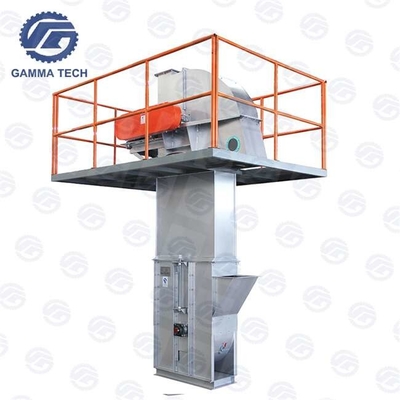

35M Small High Temperature Elevator And Conveyor For Lifting Seeds Wheat Grain 1

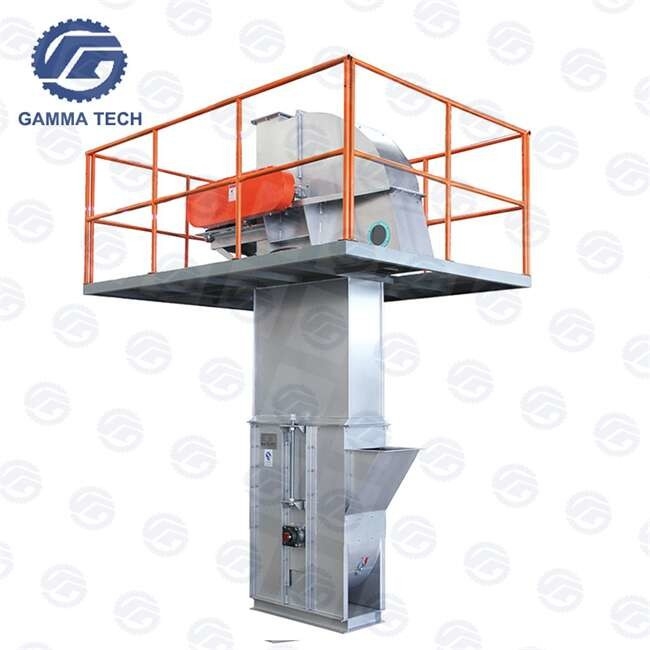

35M Small High Temperature Elevator And Conveyor For Lifting Seeds Wheat Grain 2



Q: Who Are We?
A: We are Wuxi Gamma Agriculture Technology Co.,Ltd a professional and reliable company mainly engaged in feed equipment.


Q: What Srevice Can We Provide?
A: We have feed production line , single machine and device parts for you.


Q: When will our problems be solved?
A: At the moment you tell us, we have contacted our professional technicians, you don't have to worry.


Q: how can we guarantee quality?
A: We have relative certificates, and our machine have one year warranty
if you have need, final Inspection before shipment.
