| Place of Origin: | China |
|---|---|
| Brand Name: | GAMA TECH |
| Certification: | CE |
| Model Number: | SZLH420 |
| Minimum Order Quantity: | 1 |
| Price: | 10000-50000USD as per specification |
| Packaging Details: | Wooden Box /Steel Pallet/ Regular standard packing suitable for seafreight |
| Delivery Time: | 40-60days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 20 Sets Per Year |
| Model: | SZLH420X138 SZLH420D | Power: | 110kw |
|---|---|---|---|
| Brand Of Motor: | Simens | Bearing: | SKF Bearing |
| Ring Die Dia: | 420mm | Capacity: | 10-12tph |
| Voltage: | 380v/50hz Customized | Color: | Blue Or Green Customized |
| Ring Die: | Stainless Steel | Conditioner: | Single Layer Standard /could Be Double And Tripple |
| Feeder: | Frequency Type | Die Hole Size: | Customizedf |
| High Light: | 110kw Ring Die Pellet Mill,10Tons/H Wood Ring Die Pellet Mill,Sawdust Wood Ring Die Pellet Mill |
||

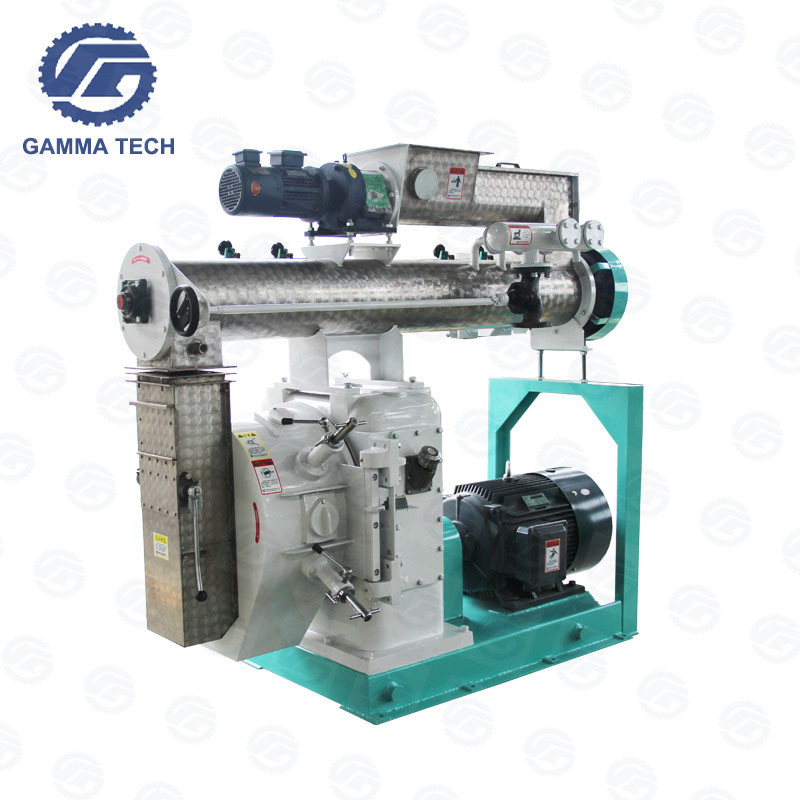

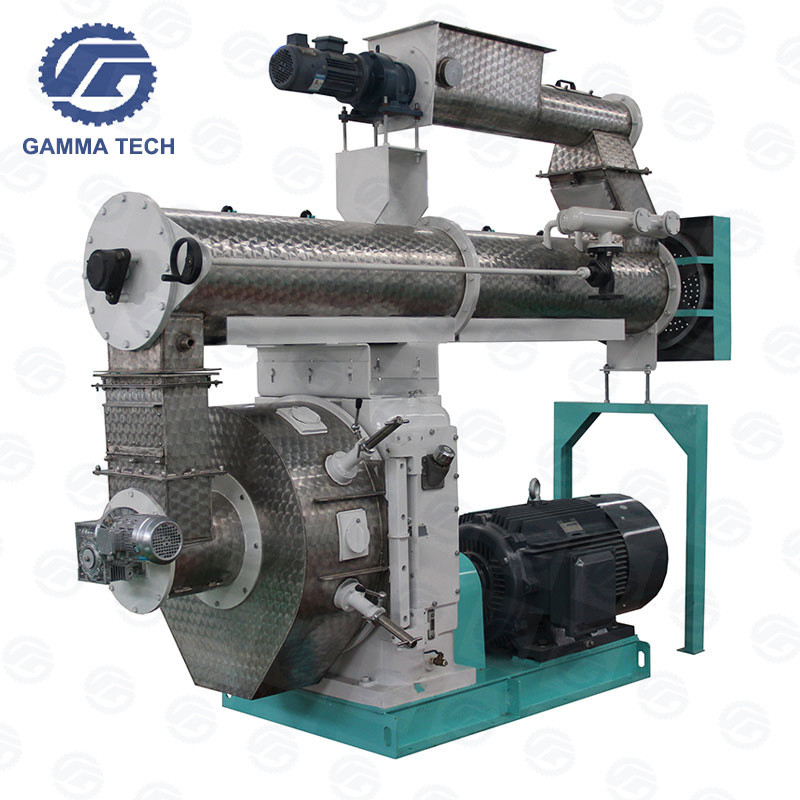

Gamma Tech Ring Die Pellet Mill SZLH420D 10t/h Feed Production Capacity.
Our factory Wuxi Gamma Agriculture Technology Co.,Ltd is a professional manufacturer and supplier of ring die pellet mill,
animal feed pellet mill, poultry feed pellet mill, shrimp feed pellet mill, aqua feed pellet mll, floating fish feeds extruder
and complete feed pellet production lines over 20 years.we have capability to manufacture and provide pellet mill,
complete feed pellet production lines with capacity from 1TPH to 60TPH and floating/sinking fish feed production line from 1TPH to 20TPH.
we have ever set up different capacity complete feed pellet production lines over the world, such as in Greece,Spain,Algeria,
Saudi Arabia,Qatar, Oman ,Columbia Tunisia,Egypt,Vietnam, Thailand,Bangladesh, India,Malaysia,Indonesia,Korea, Chile, Peru, Brasil, Argentina....
Main Feature of Gamma Tech Ring Die Pellet Mill:
1.This feed pellet mill is equipped with screw feeder controlled by FC inverter with permanent magnet to removing iron impurities.
2. Stainless steel conditioner with multiple steam inlet makes even retention and sufficient cooking effect.
3. Gear directly-connecting driving is adopted for high accuracy and efficiency. The output can increase
15% comparing to feed pellet machine driven by belts. which will save power consumption per ton a lot .
4. High quality bearings(SKF),motor( Siemens or China top brand-Wannan ) is adopted to makes operation smoothly.
All Skf Bearing are Genius origional
5. Main gear and pinion shaft adopt the carbonizing quenching with high accuracy, to ensure smooth driving, low noise and long service life.
6. The ring die& roller assemblies are quickly assembled and disassembled. ring Die is stainless Steel .
7. Applicable for all kinds of high grade animal/livestock/aqua feed. Sinlge, double or three layers of conditioner is optional.
8. Speed-adjust feeding, adopted by this feed pellet machine, can control the feeding capacity correctly to fit for different
and meet the production requirement of pellets with different diameters
Models of Gamma Tech Ring Die Pellet Mill:
| Model | SZHL320 | SZHL350 | SZHL400 | SZHL420 | SZHL508 | SZHL678 |
| Capacity(T/H) | 2-6T/h | 3-7T/h | 3-12T/h | 3-15T/h | 10-18 T/h | 15-25T/h |
| Main motor (kW) | 20/30kW | 37/45kW | 75/90kW | 90/110kW | 132/160kW | 220kw |
| Conditioner (kW) | 2.2kW | 3kW | 5.5kW | 5.5kW | 7.5kW | 7.5kW |
| Feeder (kW) | 0.75kW | 1.1kW | 1.5kW | 1.5kW | 2.2kW | 1.5kW |
| Ring Die (mm) | 320mm | 350mm | 400mm | 420mm | 500mm | 550mm |
| Pellet Size (mm) | 2-18mm | 2-18mm | 2-18mm | 2-18mm | 2-18mm | 2-10mm |
Photos:
Manufacturing Facilities,Good machine from good tools .
POWDER COATING LINE
LASER CUTTING LINE
RING DIE PRODUCTION LINE
Machinery Delivery:
if you want more informations ,pls send us email request.
