Long Life 5 - 7mm Ring Roller Die Ox Cow Cattle

Basic Information
Place of Origin: Jiangsu CHINA
Brand Name: gamma tech
Certification: ISO9001
Model Number: customized
Minimum Order Quantity: 1
Price: 500U.S.D-50000U.SD
Packaging Details: Bare packing, iron pallet, wood pallet,
Delivery Time: 15-30DAYS
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10000
Detail Information
Quality Level: Long Life Capacity: 0.5-10tph
Material: Stainless Steel Delivery Time: 15-30days
Usage Range: Poultry Livestock Aquatic Product Color: Customized
High Light:

7mm ring roller die


cattle ring roller die


7mm pallet mill roller

Product Description

Product Description

Looking For Agent To Get Big Win-Win And Share Markets Together, U Can Get:
1. China 20years top professional manufacturer technology and VIP service support.
2. Top quality, with longer quality warranty.
3. Very competitive price, near cost price, can earn more money and hold the market.
4. Fast delivery time, will deal with your orders first time.
5. Customers resources support, we share our customers with u, and one area only one agent.
6. China travelling and visiting. We provide government offical invitation letter to help u to get Chinese Visa, and we bear the travelling fee in China.
7. Other more benefit or right, we discuss.

Introduction for our pellet mill ring die factory:

We are a professional manufacturing factory for Ring Dies, Pellet Dies, Flat dies, Feed Mill Pellet Ring Dies, Pellet Mill Ring Dies, Animal Feed Pellet Mill Ring Die, Pellet Machine Ring die, Pellet Press Ring Die, Wood Pellet Machine Ring Die, ring die accessories etc. spare parts.
Ring die is very important part of ring die pellet machine in the whole manufacturing process. The quality of ring die not only directly relates with the quality and output of pellets, but also the running state of equipment and maintenance cost.

Range of ring die spare parts' application:
Applicable for Biomass pellet machine: wood pellet mill, sawdust pellet mill, grass pellet mill, straw pellet mill, crop stalk pellet machine, alfalfa pellet mill etc.
Applicable for Fertilizer pellet machine, all kinds of animal/poultry/livestock feed pellet machine too.

Introduction of pellet machine ring die:

1. Material of the ring die: X46Cr13 /4Cr13(stainless steel), 20MnCr5/20CrMnTi (alloy steel) or customized

2. Hardness of ring dies: HRC54-60.

3. Diameter of ring die can do: 1.0mm up to 28mm

4. Pellet die type can do: Ring Die or Flat Die

5. Outer diameter can do: Outer diameter up to 1800mm

6. Pellet Die model we can customize:

For Awalia pellet mill: Awalia 420, Awalia350, etc

For Bu hler pellet mill: Bu hler350, Bu hler400, Bu hler420, Buhl er520, Buh ler 660, etc.

For CPM pellet mill: CPM2016, CPM3016, CPM3020, CPM3022, CPM7726, CPM7932, etc.

For CPP pellet mill: CPP150, CPP200,CPP360,CPP300,CSP020, etc.

For IDAH pellet mill: IDAH530, IDAH530F, IDAH635D, etc.

For Muyang pellet mill: MUZL180, MUZL350, MUZL420, MUZL600, MUZL1200, MUZL610, MUZL1210, MUZL1610, MUZL2010; MUZL350X, MUZL420X, MUZL600X, MUZL1200X(Especially for shrimp feed pellet, diameter: 1.2-2.5mm)
Muyang FAMSUN350,Muyang FAMSUN420, Muyang FAMSUN550, Muyang FAMSUN600, Muyang FAMSUN1210

For Zhengchang feed pellet mill: SZLH250, SZLH300,SZLH320,SZLH350,SZLH400,SZLH420,SZLH508, SZLH678, SZLH768, etc.

For HKJ feed pellet mill: HKJ250, HKJ320,HKJ350,HKJ400,HKJ420,HKJ508 etc.

For SZLJ feed pellet mill: SZLJ250, SZLJ320,SZLJ350,SZLJ400,SZLJ420,SZLJ508 etc.
For OGM pellet mill: OGM-0.8, OGM-1.5, OGM-6, etc.

For VAN ARSEN pellet mill: Van Arson C600, Van Arsen750, Van ArsenC900, etc.
For KAHL pellet mill (Flat die): KAHL38-780, KAHL37-850, KAHL45-1250, etc.

For PTN pellet mill: PTN580, PTN580-C, etc.

For Yemmak pellet mill: YEMMAK520, YEMMAK420, etc.

For Zhengchang wood pellet mill: MZLH250 ,MZLH320, MZLH350, MZLH400, MZLH420, MZLH508, MZLH678, MZLH768, etc.

For Yulong wood pellet mill: XGJ560, XGJ850, etc.

Process for making pellet mill ring die:

Blank raw material Forging---Rough turning---Half finished turning---Drilling the hole---Grinding inner bore---Treaded hole--- Keyway milling---Heat treatment---Finish turning---Package.

Compression ratio of ring die:
Generally speaking, the higher the compression ratio, the denser the finished pellets. But it does not mean that the higher the compression ratio, the better the pellet quality.
Compression ratio should be calculated based on raw material for making pellets and type of feed.
With many years pellet die manufacturing and research experience of our manufacturer, we provide some general data of ring die's compression ratio for your reference:
Buyers can customize dies with different hole diameter and compression ratio, according to different situation and requirement.

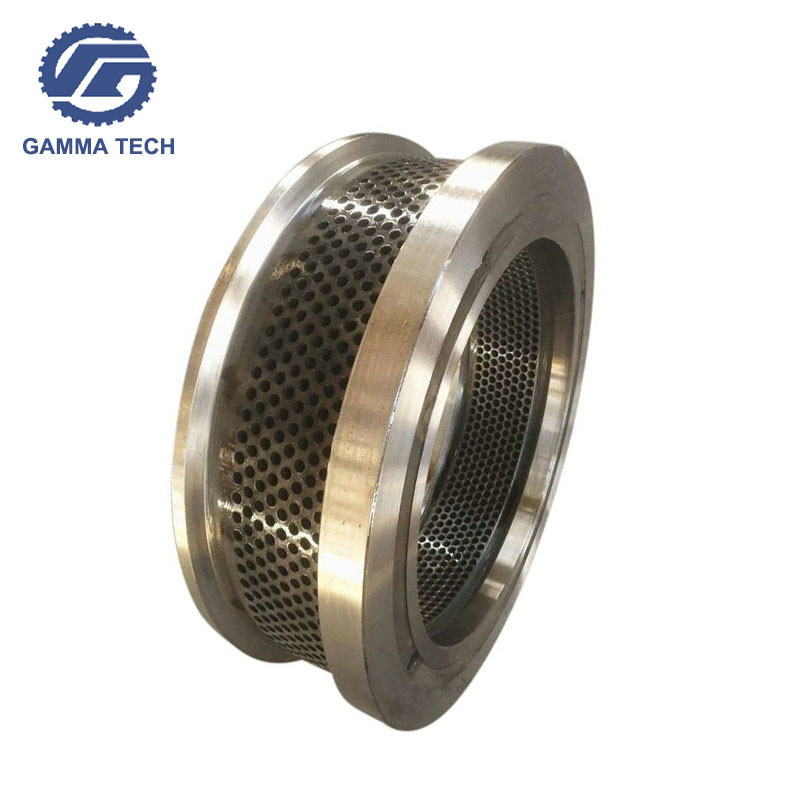

Long Life 5 - 7mm Ring Roller Die Ox Cow Cattle 0

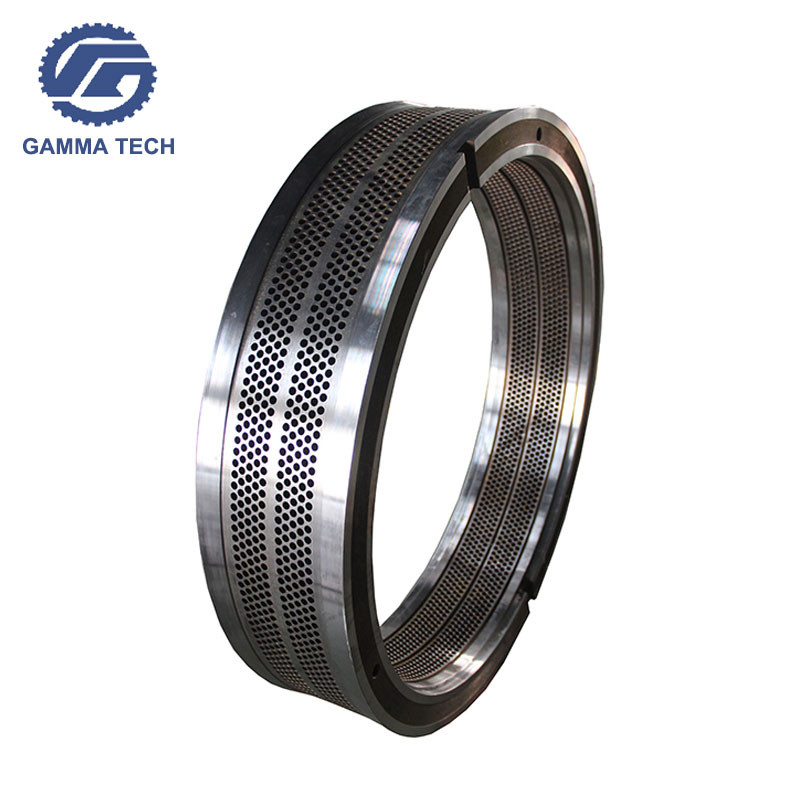

Long Life 5 - 7mm Ring Roller Die Ox Cow Cattle 1

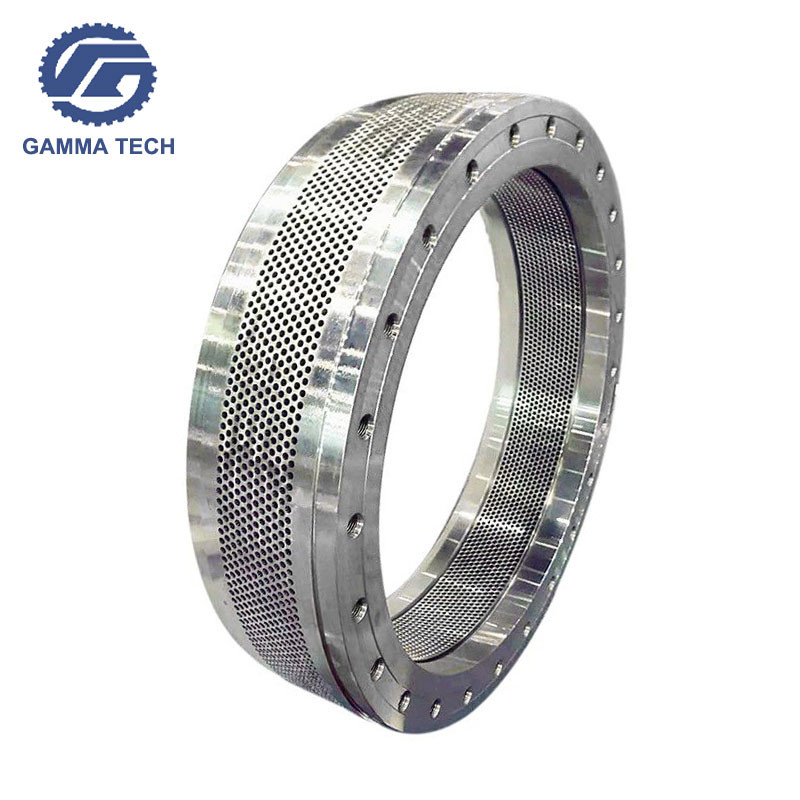

FALong Life 5 - 7mm Ring Roller Die Ox Cow Cattle 2



Q: Who Are We?

A: We are Wuxi Gamma Agriculture Technology Co.,Ltd a professional and reliable company mainly engaged in feed equipment.


Q: What Srevice Can We Provide?

A: We have feed production line , single machine and device parts for you.


Q: When will our problems be solved?

A: At the moment you tell us, we have contacted our professional technicians, you don't have to worry.


Q: how can we guarantee quality?

A: We have relative certificates, and our machine have one year warranty

if you have need, final Inspection before shipment.
