Products details

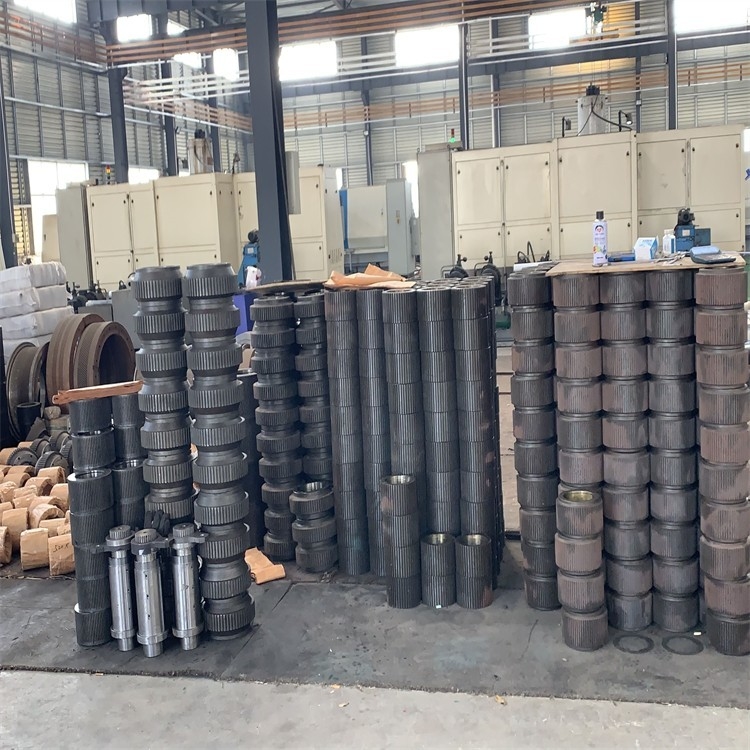

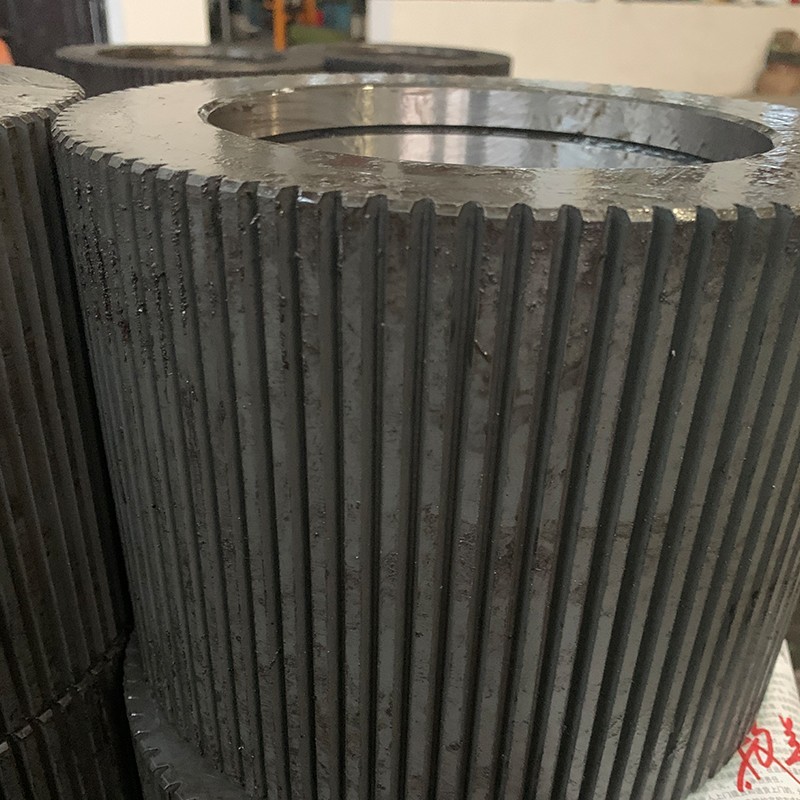

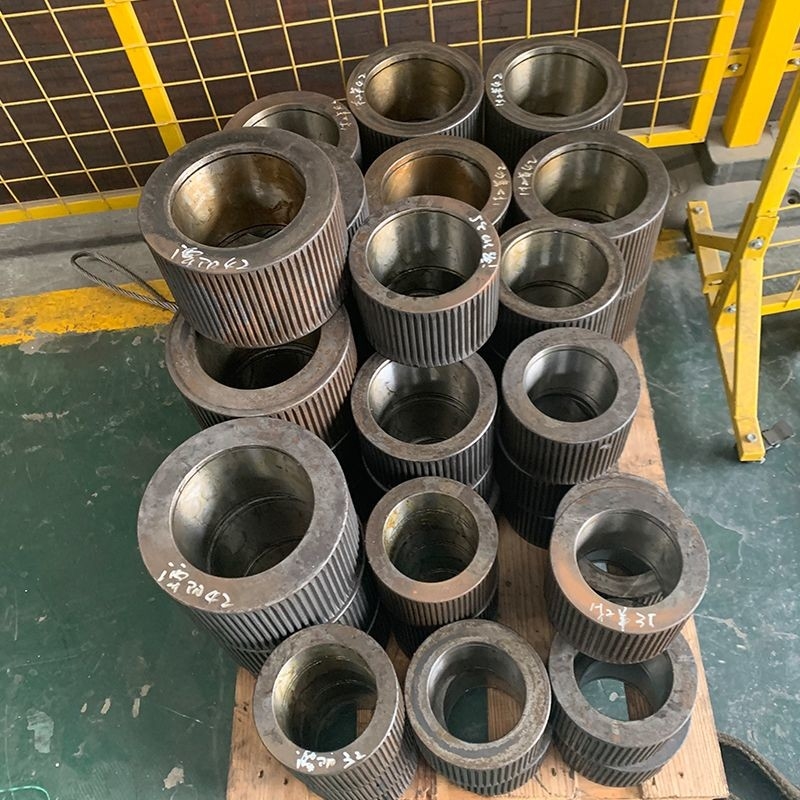

Pellet mill roller assembly, roller shell spare parts
Introduction for our pellet mill ring die, pellet die factory
We are a professional manufacturing factory for Ring Dies,Pellet Dies,Flat dies,Feed Mill Pellet Ring Dies,Pellet Mill Ring Dies,Animal Feed Pellet Mill Ring Die,Pellet Machine Ring die,Pellet Press Ring Die,Wood Pellet Machine Ring Die,ring die accessories etc. spare parts.
We have own ring die factory and technical engineers with 20 year's experience. Each year, we all sell about 4000 spare parts: ring dies, rollers, roller assemblies to all over the world.
Ring die is very important part of ring die pellet machine in the whole manufacturing process. The quality of ring die not only directly relates with the quality and output of pellets, but also the running state of equipment and maintenance cost.
Product Description
Range of ring die spare parts' Application
Applicable for Biomass pellet machine: wood pellet mill, sawdust pellet mill, grass pellet mill, straw pellet mill, crop stalk pellet machine, alfalfa pellet mill etc.
Applicable for Fertilizer pellet machine, all kinds of animal/poultry/livestock feed pellet machine too.
Introduction of pellet mill ring die, pellet die, feed die
1. Material of the ring die: X46Cr13 /4Cr13(stainless steel), 20MnCr5/20CrMnTi (alloy steel) or customized
2. Hardness of ring dies: HRC54-60.
3. Diameter of ring die can do: 1.0mm up to 28mm
4. Pellet die type can do: Ring Die or Flat Die
5. Outer diameter can do: Outer diameter up to 1800mm
6. Pellet Die model we can customize:
CPM, Buhler, CPP, OGM, Zhengchang(SZLH/MZLH), Amandus Kahl, Muyang(MUZL), Yulong(XGJ), AWILA,PTN, Andritz Sprout, Matador, Paladin, Sogem, Van Arssen, Yemmak, Promill; etc. We can customize for you according to your drawing.
For Zhengchang pellet mill: SZLH250, SZLH300,SZLH320,SZLH350,SZLH400,SZLH420,SZLH508, SZLH678, SZLH768, etc
For Muyang pellet mill: MUZL180, MUZL350, MUZL420, MUZL600, MUZL1200, MUZL610, MUZL1210, MUZL1610, MUZL2010;
MUZL350X, MUZL420X, MUZL600X, MUZL1200X(Especially for shrimp feed pellet, diameter: 1.2-2.5mm)
For Awalia pellet mill: Awalia 420, Awalia350, etc
For Buhler pellet mill: Buhler304, Buhler420, Buhler520, Buhler660, Buhler900, etc.
For Kahl pellet mill(Flat die): 38-780, 37-850, 45-1250, etc
Process for making pellet mill ring die, pellet die, feed die
Blank raw material Forging---Rough turning---Half finished turning---Drilling the hole---Grinding inner bore---Treaded hole--- Keyway milling---Heat treatment---Finish turning---Package
| ITEM | HOLEDIAMETER | COMPRESSION RATIO |
| POULTRY/LIVESTOCKS FEED PELLETS | 2.5mm-4mm | 1:4-1:11 |
| FISH FEED PELLETS | 2mm-2.5mm | 1:12-1:14 |
| SHRIMP FEED PELLETS | 0.4mm-1.8mm | 1:18-1:25 |
| Biomasss FUEL PELLETS | 6mm-10mm | 1:4.5-1:8 |
Our company
Wuxi Gamma Agriculture Technology Co.,Ltd
Wuxi Gamma Tech Machinery Co.,Ltd. is located in the Scierce And Technology Industrial Park in Wuxi Jiangsu. We have 13 years history, and our company covers an area of 34500 square meters, construction area of 27895 square meters
We are a professional manufacturer specialized in desigrning and marketing pellet mill and pellet production line. Company introduces a full set of world-class technology cof CNC laser cutting machine, profile automatic sand blasting equipment, automatic paint room, large shear bending equioment, CNC lathes, CNC wire cutting, CNC punching machine, specializing in the production of series of complete sets of feed machinery equipment and undertake complete turn-key project.
We can provide customers with: 1-200 T/H livestock and poultry feed units, 0.5-50 T/H special aquatic feed units, 1-300 T/H forage feed units,1-35 T/H compound fertilizer and irrigation fertilizer complete sets of units, 0.5-100 T/H biomass wood and straw pellet production line and so on. We provide whole plant planning, design, equipment manufactory, installation commissioning, personal training and other complete sets of one-step service.
Our machines and pellet line are all CE CERTIFICATE. We exported to all over the world, such as Russia, Greece, Romania, South Korea, South Africa and so on.
Advanced equipments:(to ensure high quality products for our clients)-German software CNC flame cutting machine -H section steel shot blasting cleaning machine
-International advanced cutting, drilling, bending equipment -Equipment for coating production line of the lacquer that bake
Tele phone:0086 15150838410 Website:www.allfeedmachinery.com E-Mail:info@gammaagri.com
Our projects on sites
FAQ
Q: Who Are We?
A: We are Wuxi Gamma Agriculture Technology Co.,Ltd a professional and reliable company mainly engaged in feed equipment.
Q: What Srevice Can We Provide?
A: We have feed production line , single machine and device parts for you.
Q: When will our problems be solved?
A: At the moment you tell us, we have contacted our professional technicians, you don't have to worry.
Q: how can we guarantee quality?
A: We have relative certificates, and our machine have one year warranty
if you have need, final Inspection before shipment.
