Scraper Bar 0.5M/S Grain Chain Conveyor TGSU U Shaped For Raw Material

Basic Information
Place of Origin: JIANGSU CHINA
Brand Name: GAMMA
Certification: ISO 9001
Model Number: TGSU
Minimum Order Quantity: 1 pcs
Packaging Details: Steel Frame
Delivery Time: 40-60days
Payment Terms: L/C, D/P, T/T, Western Union
Supply Ability: 100 pcs per Month
Detail Information
Thickness Of Cover Sheet: 2mm Thickness Of Bottom Plate: 5-6mm
Thickness Of Side Wall: 4mm Power: 2.2kw-10kw
Accessories: Speed Sensor Function: Blockages Proof
Capacity: Large Type: Single Layer & Double Layer
High Light:

0.5M/S Grain Chain Conveyor


Grain Chain Conveyor TGSU


scraper bar conveyor U shaped

Product Description

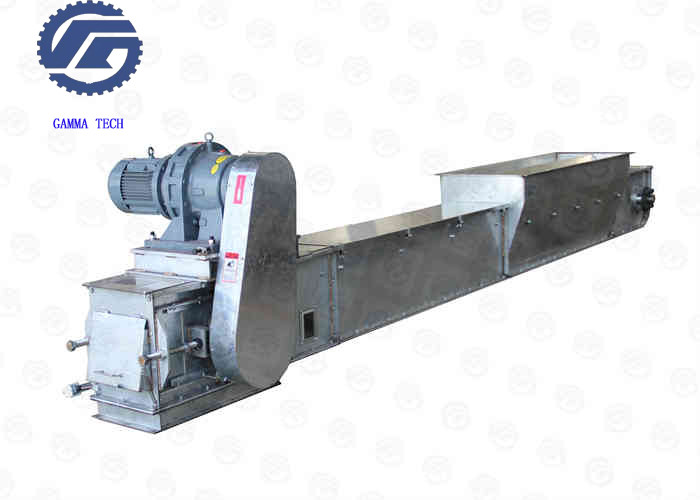

Flat bottom grain Chain Conveyor raw material conveying scraper




1 . U-shaped buried scraper can discharge material at multiple points.

2 . With heavy duty starting device and automatic alarm system.

3 . The guide rail is made of special materials.

4 . The scraper is made of polyurethane material, which is easy to operate and prolongs the service life.

5 . The chain is of high strength, high wear resistance and long conveying distance.

6 . The engine tail is advanced in design, easy to operate, and can prolong the service life.

Widely used in port terminals, petroleum, chemical industry, grain, flour, malt, wine, semi-finished feed and other materials.


Models Information :


Model Max Power (KW) Capacity (T/H) Scraper chain linear velocity (M/S)
TGSUl6 ≤7.5 10-20 0.35-0.5
TGSU20 ≤11 20-25 0.35-0.5
TGSU25 ≤15 25-40 0.35-0.5
TGSU32 ≤22 40-65 0.35-0.5
TGSU40 ≤30 65-100 0.35-0.5






 Scraper Bar 0.5M/S Grain Chain Conveyor TGSU U Shaped For Raw Material 0


 Scraper Bar 0.5M/S Grain Chain Conveyor TGSU U Shaped For Raw Material 1
